General Description

Tx speed: 9.953Gbps

Rx speed: 9.953Gbps

Tx wavelength: 1270nm

Rx wavelength: 1577nm

Minimum Fiber Output Power：2.5 mW

Minimum Sensitivity：-24 dBm

（9.953Gbps,PRBS231-1,BER=10-12,ER≥9dB）

Minimum Sensitivity：-30 dBm

（9.953Gbps,PRBS231-1,BER=10-3,ER≥9dB）

Features

Single fiber bi-directional data links application

Transmitter：DFB laser diode

Receiver：APD-TIA

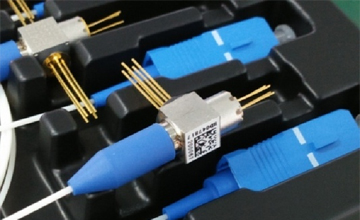

Encapsulation: SC Pigtail/ Receptacle

1270nm burst mode DFB transmitter and Burst On/Off time is less than 30ns.

1577nm continuous mode continuous-mode APD-TIA receiver

-40 ~ 85°C operating case temperature

RoHS compliance for SOEB3466-FUGF

Applications

Ethernet PON ONU for P2MP Application.

Standard

Compliant with  ITU-T G.987.2
